Technoedge Power Limited., is experienced in supplying HT Switchgear Panel both 11 KV sub-station and Power distribution. We use imported MS sheet, Copper Bus bar, and quality metering system. We fabricate the panel in our Works and paint them in our powder coating plant. We use circuit breakers and IDMT relay as per the requirement of the client. Technoedge Power Limited. HT Switchgear is reliable, low main-tenance and economical for High voltage distribution applications such as main switchgear, load switching center and unit sub-station. Cost effective in utility, industrial and commercial applica-tions where switching is infrequent, and the absence of quick re-closing and protective relaying functions eliminate the need for more expensive metal-clad switchgear with Fixed type or draw out circuit breaker.

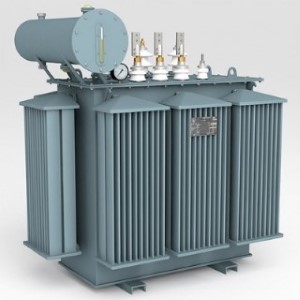

The range consists of transformers complying with following specification: 3-phase transformer for indoor or outdoor Step Down / Step-up type Rated frequency: 50Hz Maximum ambient temperature: 40°C Temperature rise: oil 60°C winding: 65°C Mineral Oil immersed ONAN type natural cooling Vector group: Dyn11 Input Voltage: 11000V Output Voltage: 415V / 230V Insulation (KV) 7.2 / 12 2 earthling terminal on cover

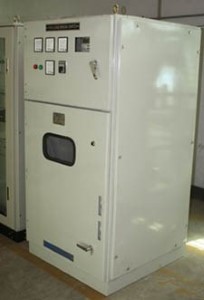

This protective equipment is used at 11 kV sub-station. The main Load Break Switch (LBS) mechanism is available for 630A & the over current protection scheme is done through HRC fuse. The panel includes 3 numbers of CT (Current Transformer) & 2/3 numbers of PT (Potential Transformer) for measuring system current & voltage respectively & 3 numbers of HRC Fuses for protection of overload. The scheme is so designed that if fault occurs in any phase it will isolate the whole three phases from the system instantly. The panel also includes 3 numbers of Ampere meters & one number of Voltmeter with selector switch for monitoring system current & voltage. The standard panel size is 900x900x1800 mm & weight is around 450 kg.

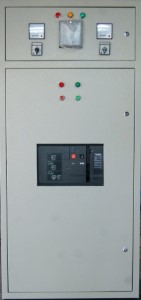

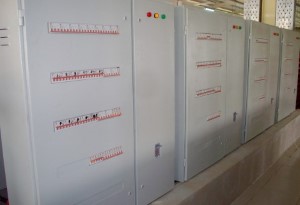

Technoedge Power Limited manufacture LT Switchgear that is Sheet fabricated, powder coated painting, dust and vermin proof, free standing, floor mounting with top and bottom cable entry provision or customer required indoor type, with ACB, MCCB and metering, relay control panel indicating auxiliaries as to IEC or BS standard. The switchgear is noted for the following features: Prime Quality cold rolled MS sheet used for making switch Gear panel Proper cad design & Engineering is applied Long durable electrostatics powder coated paint. Prime quality imported copper Bus bar Heat resistant insulator All accessories like plug-in-bas bar, earthling & natural block are of European origin Heavy duty, durable imported lock is used

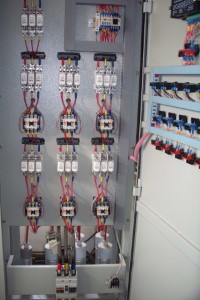

Auto/Manual Power Factor Improvement Plant that are specially designed to save electricity. These panels comprises of a power factor controller that accurately monitors reactive power in power systems in order to save energy. These are also used to monitor the power factor of various electrical systems. We also assemble various capacitors, HRC Fuse MCB, MCCB and heavy duty contractors in PFI that acts as in-built protective devices to cut off power in case there is excess power in the system. The capacitors are also provided with series reactors that minimize harmonic current that otherwise can alter system voltage and current. Depending on the load variation the PFI Panel automatically switches the externally/internally installed capacitor ON or OFF to bring it to the desired or preset value of power factor.
Technoedge Power is representing BBT of various international brands in Bangladesh. We import both Copper and Aluminum BBT products. Bus bar Trunking is a prefabricated, modular system, designed to transmit and dis-tribute electricity. The following products are available for your needs. 25A-40A Lighting bus bar 63A-160A Low power bus bar 160A-1000A Plug-in distribution 800A-5000A power bus bar
We are highly experienced in industrial electrification and erection. We do complete electrical wiring of all types of industries like Garments, Textiles, Pharmaceuticals, Knit, and Spinning Mills Plastic Industries etc. We have a highly experienced technical team for planning, estimation, drawing, installing, commissioning and testing. We provide very sincere after sales service. Wiring is done through Bus Bar Trunking System, various types of steel fabricated cable tray or using Thai aluminum as per customer requirement. In short we are ready for total electrifications of any types of industries

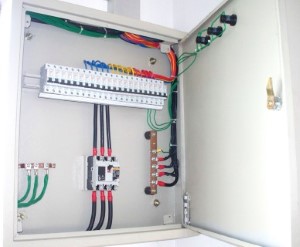

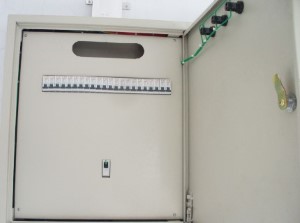

Technoedge Power Limited offer high quality electrical distribution boards for domestic and industrial use. These boards are suitable for surface or flush mounting on the electricity supply system. The board provides protection against corrosive environment. Our range of distribution boards is available in both single as well as double door design. Bus bars are produced of high conductivity copper. Suitable for application in: Incoming: 1, 2 & 3Pole. Outgoing: 1, 2, 3, 4, 6, 8, 10 & 12 Ways Salient Feature: SPN/TPN DB's Double Door

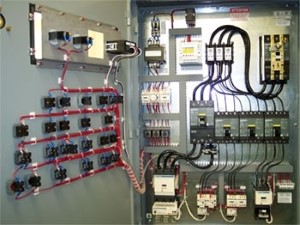

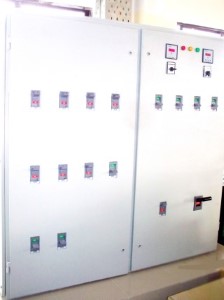

We are specialized in meeting the technical requirements through design, manufacture, test and supply of 415 V MCC Panel Boards with all accessories for efficient and trouble free operations. Motor Control Centers are the panel assemblies such that all the motors are installed at different places for different applications in a work station can be operated from one place with all the protection devices provided in the panels. These are available in a wide variety such as DOL, Star Delta, and Reverse Forward etc for individual machines to as many starters as required by you in a single panel. We have the facility to manufacture MCC panels from M.S sheet duly powder coated these are manufactured in Indoor Type, Outdoor type, Flush type and Desk according to its application. Our MCC involves following features:
White line SPN/TPN DB's with transparent cover Phase selector distribution board Vertical Distribution Board Easily accessible Earth and Neutral bars. Single piece copper bus bar eliminates potential hotspots.
MCCB/MCB for protection Bus Bars of proper rating duly covered with acrylic sheet for safety. Copper strip for earthling Panel light and fan for ventilation.

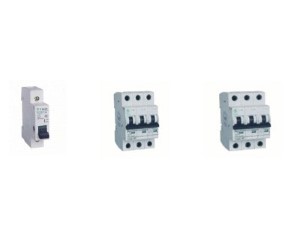

MCB’S: Protection and control the circuits against overloads and Short circuits protection for people and big length cables. Applications: Factory, Buildings both residential and commercial. Operating Voltage: 230V / 440V

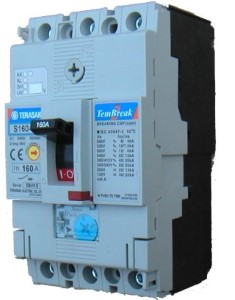

MCCB’S: Protection and control of electrical machineries against overloads, short circuits protection for people and big Length cables. Applications: Industrial & residential low voltage plants with current From 10A to 800A there are used in D.C and A.C switchgear for motor protection generators capacitors, cable etc. Operating Voltage: 380V - 440V
ACB’S: Air circuit breakers are rated 800A to 4000A, AC 50HZ 380V in voltage. The breaker is mainly used to distribute electric energy in the power distribution network and to prevent the circuit and power source equipment from overload, under voltage and short circuit. Under the normal conditions, the breaker can be used to switch the circuit and start the motor infrequently. With the current limiting characteristics, the ACB is especially suitable for the large short-circuit current is likely to occur.

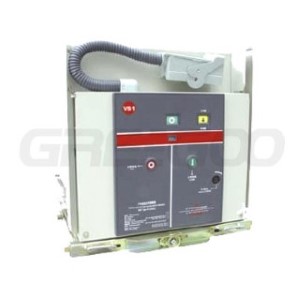

VCB’S: AC high voltage vacuum circuit breaker is a type of holistic and completely sealed HV switchgear it has compactable dimension and small volume. The VCB applies to power system of rated voltage 12kV, three-phase and AC 50/60Hz. It is applicable in occasions with frequent operations, acting to protect and control line and electric apparatus. The product conforms to IEC62271, GB1984, JB3855 and DL1403 and passes KEMA test.

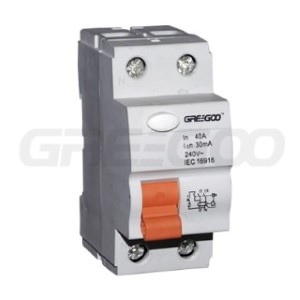

RCCB’S: the RCD employs the current balance principle which involves the supply conductors to the load (phase & neutral) wound onto a common transformer core to form the primary windings. Under healthy conditions, the current in the phase conductor is equal to the current in the neutral, and the vector sum of the current is zero. In the event of an amount of current will flow to earth. The RCD trip mechanism will operate at a residual current of between 50 – 100% of its rating tripping current (sensitivity).
Thermal overload relay is used in connection with A and AF to protect motor against overload and phase failure with a rated operating voltage. The range of thermal overload relay are from 0.28A up to 230A

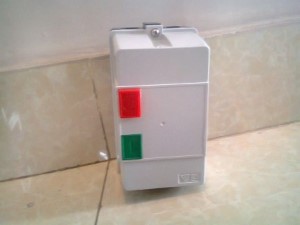

Magnetic contactors are used for controlling three phase motor and power circuits and other applications like bypass, capacitor switching lighting etc. The magnetic contactor ratting are two type one AC-1 and other AC-3. AC-1 rating for non-inductive or slightly inductive loads, resistance furnace etc. and AC-3 rating for squirrel cage motor starting, switching-off motor during running.

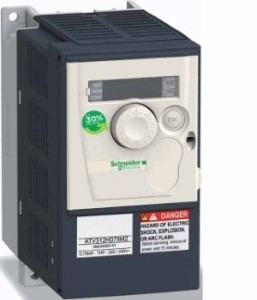

NVERTER: 200V-240V single-phase 200V-240V/380 -500V/525V to 600 V, Three phase, 50/60 Hz. Speed regulation by flux vector control Speed range from 1 to 50 2 Hz to 3 Hz without adjustment Auto-tuning Protection of motor and of drive Operation up to 50°C without de rating Brake sequence Limit switch management Traverse control (textile machines) Compact, side by side mounting Integrated class-A EMC filter, Class-B optional Other versions: IP55 enclosure or drive kit.
The magnetic starters have been regularly used throughout industries for the excellence and reliability the magnetic contactors & thermal overload relays succeeded such a time honored tradition are assured maximum satisfaction to customers in the world.
In star-delta starters, the contactor recluses at the changeover from star operation to delta operation at this time, a large transient current greater than the direct starting current of motor flows for a moment for 2-contactor type. The closed transition type star-delta starter with a shunt resistor is available to resolve this problem.
Definition: This capacitor is installed at low voltage (220v, 380v, 440v, 480v) electrical system in parallel for improving power factor and performance of electrical power quality. Feature: Used advanced technology consists of metallized PP film with extremely low loss factor. The dielectric system is self-healing and has no liquid imp regnant. Capacitor enclosed in cylindrical aluminum cases. The capacitors have overpressure protection to disconnect it frothed supply in the event of its operational life. The construction described above and the uses of high quality materials ensure reliability and longevity.
Application: When the product is connected in parallel, the cable used in connection must cover the permissible current of capacitor bank. And it is mandatory installing circuit breaker and other equipment for protection purpose to prevent the spread of accidents caused by faulty capacitor.

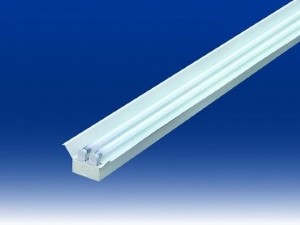

Industrial T5 Light Shade

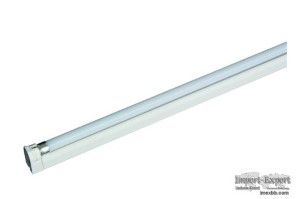

Industrial T8 Light Shade

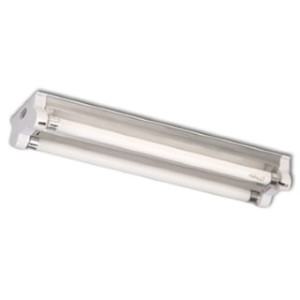

Industrial T8 Open Light Shade

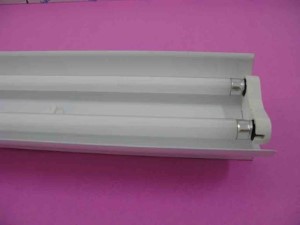

Industrial T5 Open Single Shade

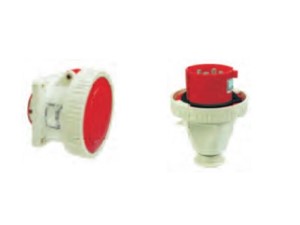

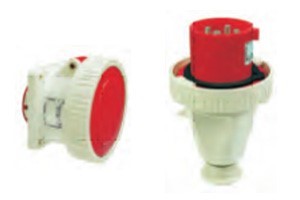

Rating: 3Pin, 4Pin (16Ams to 50Amsp)

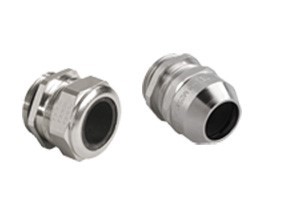

Size:M16/M20/M25/M32/M40/M50/M63
Rating:3Pin, 4Pin (16Ams to50Amsp)
Size: 98x98x61 or167x125 x 82mm
